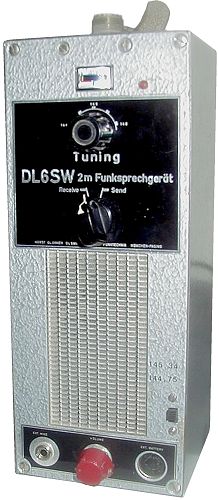

| Type: | Amateur VHF Transceiver |
| Frequency Range: | 143.6-146.4 MHz |
| Mode: | AM |
| RF Power output: | 70 mW |
| Sensitivity: | N/A |
| Selectivity: | FM: 12 KHz (-6 dB), 30 KHz (-60 dB) NFM: 6 KHz (-6 dB), 20 KHz (-60 dB) |
| Image rejection: | 60 dB |
| Voltage: | 13.5 VDC |
| Current Drain: | RX: 20 mA, TX: Max 170 mA |
| Aerial Input: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 222*90*83 mm |
| Weight: | 1.3 Kg |
| Manufactured: | W.Germany, 1964-19xx (by Glonner Funktechnik) |
| Other: | RX = VFO, TX = XTAL |
| Related Documents: | Schematic (137 Kb), Parts list (156 Kb) |
