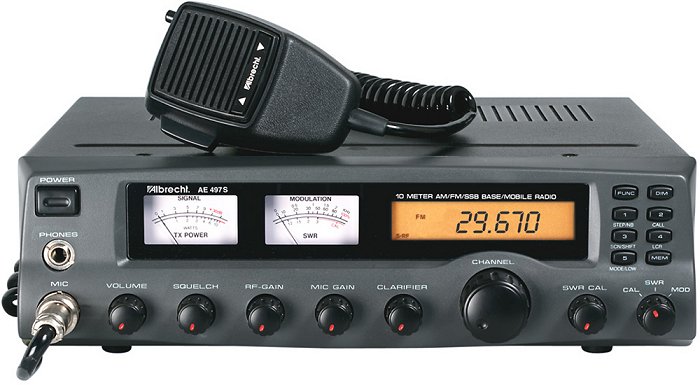

Albrecht AE-497S
| Type: |
Amateur Transceiver |
| Frequency Range: |
28.0-29.7 MHz |
| Mode: |
AM/FM/SSB |
| RF Power output: |
AM: 4 W
FM: 10 W
SSB: 12 W (PEP) |
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
FM/SSB: 0.25 uV (10 dB S/N) |
| Selectivity: |
N/A |
| Image rejection: |
>70 dB |
| Voltage: |
12-15.9 VDC or Mains |
| Current Drain: |
RX: ? mA
TX: Max 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
300*85*240 mm |
| Weight: |
3.4 Kg |
| Manufactured: |
200x-200x |
| Other: |
|
| Related Documents: |
User Manual (270 KB) |
|
