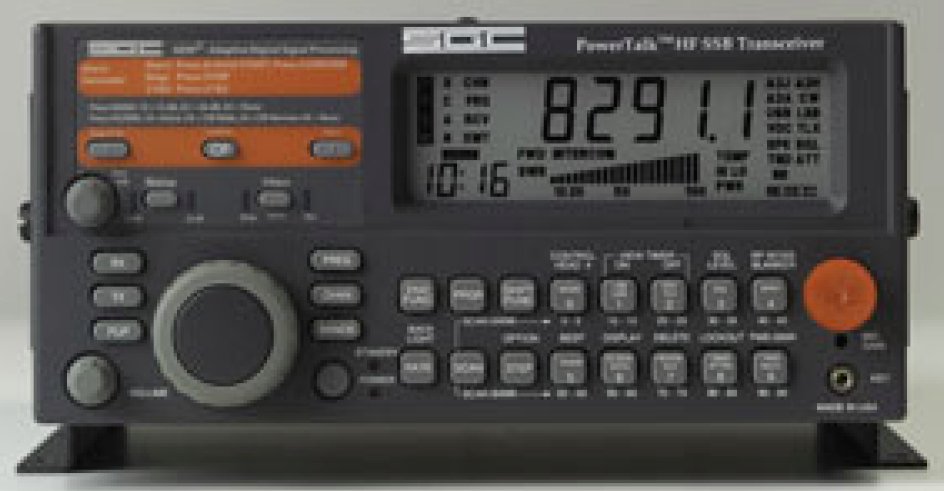

SGC SG-2000 ADSP
| Type: |
Amateur Transceiver |
| Frequency Range: |
TX: 1.8-30 MHz
RX: .5-30 MHz |
| Mode: |
SSB/CW/AM |
| RF Power output: |
150W PEP |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 800 mA, TX: Max 16 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
10 x 5 x 15 inches |
| Weight: |
12 lbs |
| Manufactured: |
20xx-2008 (Discontinued) |
| Memories: |
644 ITU voice & data factory programmed
100 user programmable (will scan 100) |
| Related Documents: |
Brochure (132 Kb)
Standard Manual (2.08 MB)
PowerTalk Manual (235 Kb)
ADSP2 Addendum/A> (3.25 MB) |
|
