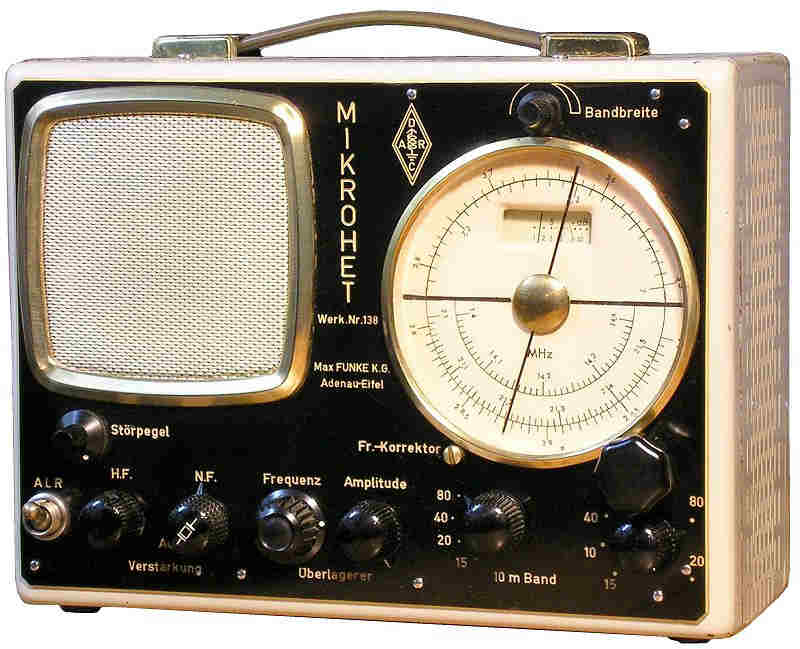

Funke Mikrohet (Max Funke KG, Adenau)
| Type: |
HF Receiver |
| Frequency Range: |
10-80 m |
| Modes: |
AM/SSB |
| Memory Channels: |
N/A |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Speed: |
N/A |
| Search Speed: |
N/A |
| Increment Steps: |
N/A |
| Scan Delay: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
? |
| Aerial Input: |
60 ohms |
| Dimensions (W*H*D): |
250 x 190 x 110 mm |
| Weight: |
5 Kg |
| Manufactured: |
West Germany, 1961-1962 |
| Other: |
|
| Related Documents: |

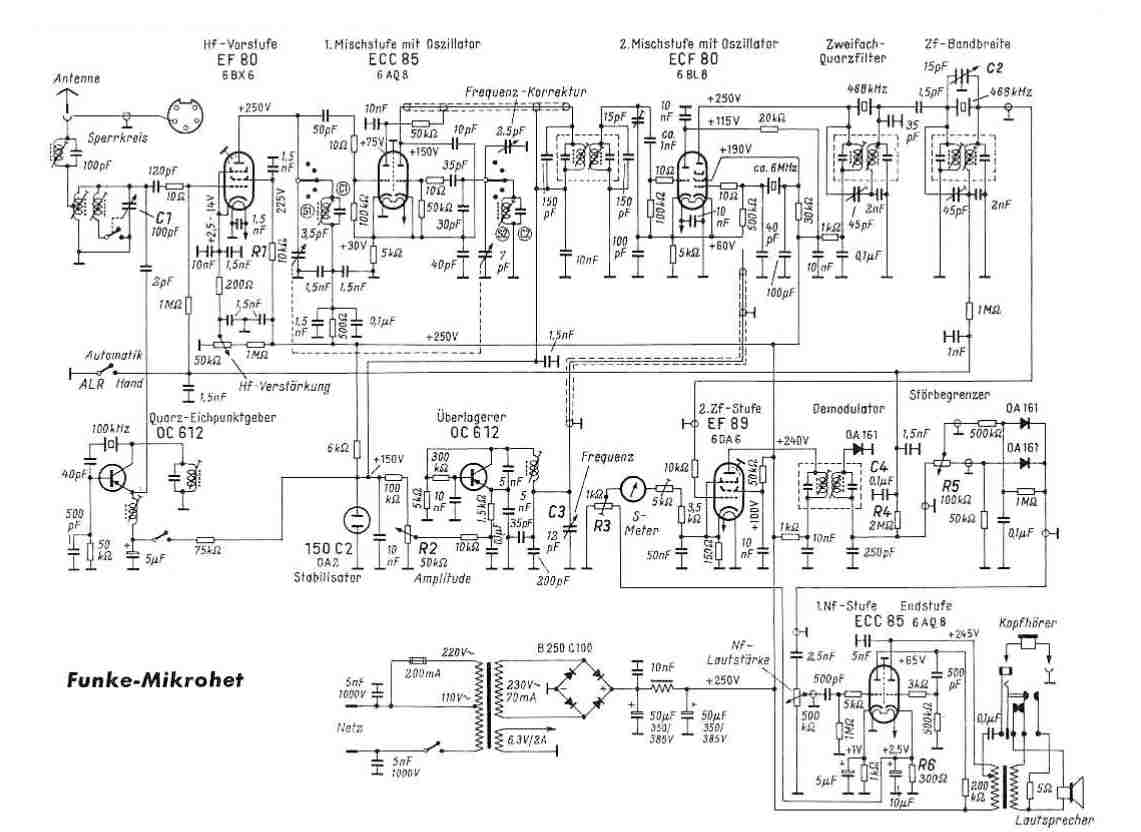

Schematics |
|
