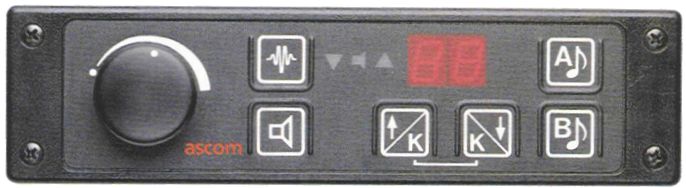

Ascom SE540
| Type: |
Private Mobile Radio |
Frequency range
depending on version: |
68-88 MHz
146-174 MHz
170-225 MHz
400-430 MHz
440-470 MHz |
| Mode: |
FM |
| RF Power output: |
1-12 / 20 / 25 W (depending on version) |
| Sensitivity: |
0.35 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image rejection: |
>70 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 350 mA
TX: 2.5 A (10 W), 6 A (25 W) |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
168*48*171 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
1990-199x |
| Other: |
20 channels |
