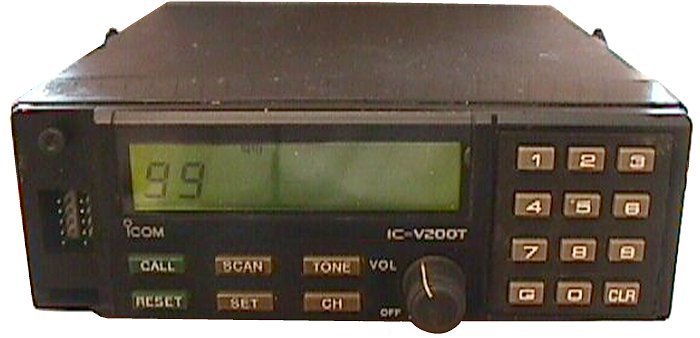

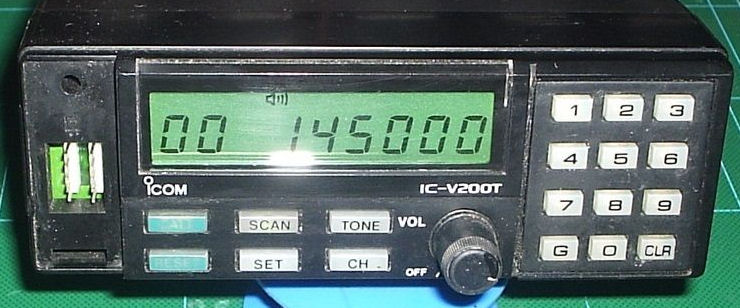

Icom IC-V200T
| Type: |
Private Mobile Radio |
Frequency range
depending on version: |
68-88 MHz
146-174 MHz |
| Mode: |
FM |
| RF Power output: |
Max 25 W |
| Sensitivity: |
0.55 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.35-1 A
TX: Max 7 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*50*191 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
5-tone CCIR and ZVEI. |
| Related Documents: |
|
Modified For Amateur Band:
 |
