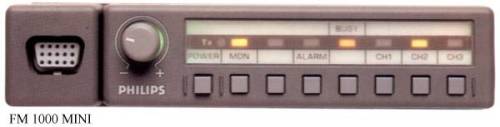

Philips FM-1000 (Mini)
| Type: |
Private Mobile Radio |
Frequency Range:
depending on version: |
68-88 MHz
132-156 MHz
146-174 MHz
174-208 MHz
192-225 MHz
380-440 MHz
425-450 MHz
440-470 MHz
470-520 MHz |
| Mode: |
FM |
| RF Power output: |
68-174 MHz: 1-30 W, 174-225 MHz: 1-25 W, UHF: 1-6 W or 6-25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1 A, TX: Max 8 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
Head Mini: 143*38*30 mm, Midi: 143*57*30 mm, Maxi: 185*57*30 mm
Radio box: 185*39*210 mm |
| Weight: |
1.6 Kg (radio box) |
| Manufactured: |
199x-200x |
| Other: |
100 channels |
| Related Documents: |
|
|
