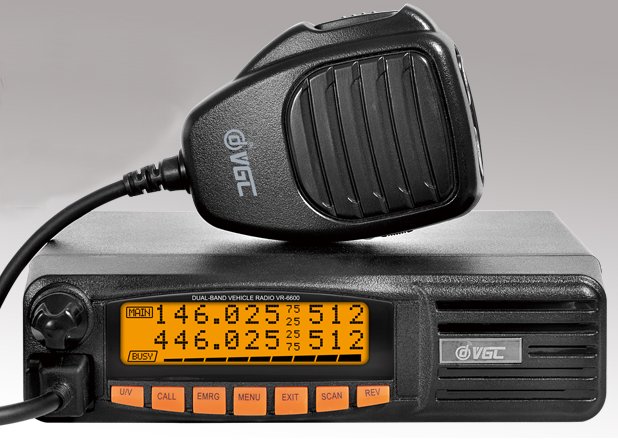

VGC VR6600
Type:
Private Mobile Radio
Frequency range
depending on version:
136-174 / 300-350 MHz
136-174 / 350-390 MHz (TX/RX)
136-174 / 400-470 MHz (TX/RX)
136-174 / 450-520 MHz (TX/RX)
136-174 / 245-246 MHz (TX/RX)
144-146 / 430-440 MHz (TX/RX)
Mode:
FM
Channels:
512
Frequency Steps:
12.5, 25 KHz
RF Power output:
60W/40W
Voltage:
13.8 VDC
Current Drain:
RX: ? mA
TX: Max ? A
Aerial Input:
50 ohms
Dimensions (W*H*D):
140 x 40 x 146 mm
Weight:
1 Kg
Manufactured:
20xx-20xx
Other:
Dual Band/Frequency/Watch/Standby
CTCSS / CDCSS. PC-programmable.
Cloning Facility
