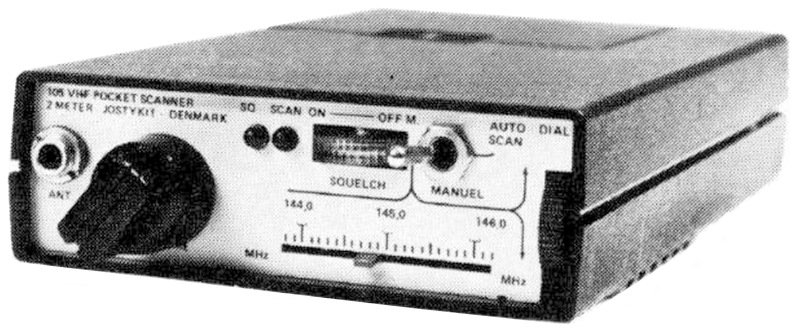

JostyKit JK105

Type: HF/VHF Receiver/Scanner
Frequency Range:
(Dependant on version)
26-28 MHz
65-94 MHz
87-104 MHz
144-146 MHz
150-170 MHz
Modes: FM (15 KHz BW) or WFM (200 KHz BW for the 87-104 MHz version)
Memory Channels: 10 channels. XTAL
Search Banks: N/A
Priority Channels: N/A
Scan Rate: Performs a full 2 MHz sweep in 1 second!
Search Rate: N/A
Frequency Steps (kHz): N/A
Scan Delay: N/A
Voltage: Internal: 4.8-6 VDC (4 x AA)
External: 4.5-9 VDC
Current Drain: 25-100 mA
Aerial Input: 50 ohms
Dimensions (W*H*D): 80 x 25 x 135 mm
Weight: ?
Manufactured: Denmark, 1980-198x (Discontinued)
Related Documents: Schematic (287 Kb)
