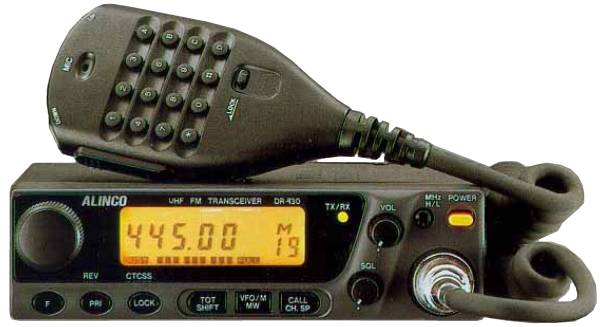

Alinco DR-430
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz (Europe)
440-450 MHz (USA) |
| Modes: |
FM |
| RF Power output: |
Hi: 50 W
Lo: 5 W |
| Sensitivity: |
-16 dBu for 12 dB SINAD |
| Selectivity: |
More than 6 KHz (-6 dB), Less than 15 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: < 800 mA (squelched)
TX: 3.5-10.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*154 mm |
| Weight: |
0.86 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
