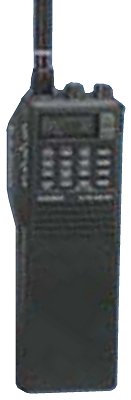

| Type: | Amateur HF Transceiver |
| Frequency Range: | 28-29.7 MHz |
| Mode: | FM |
| RF Power Output: | Hi: 5 W Lo: 0.5 W |
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB), 30 KHz (-60 dB) |
| Image Rejection: | 60 dB |
| Voltage: | 6.3-16 VDC |
| Current Drain: | RX: 28-150 mA TX: 0.5-1 A |
| Aerial Input: | 50 ohms |
| Dimensions (W*H*D): | 60*174*33 mm |
| Weight: | 550 gr |
| Manufactured: | Japan, 200x-200x |
| Other: | |
