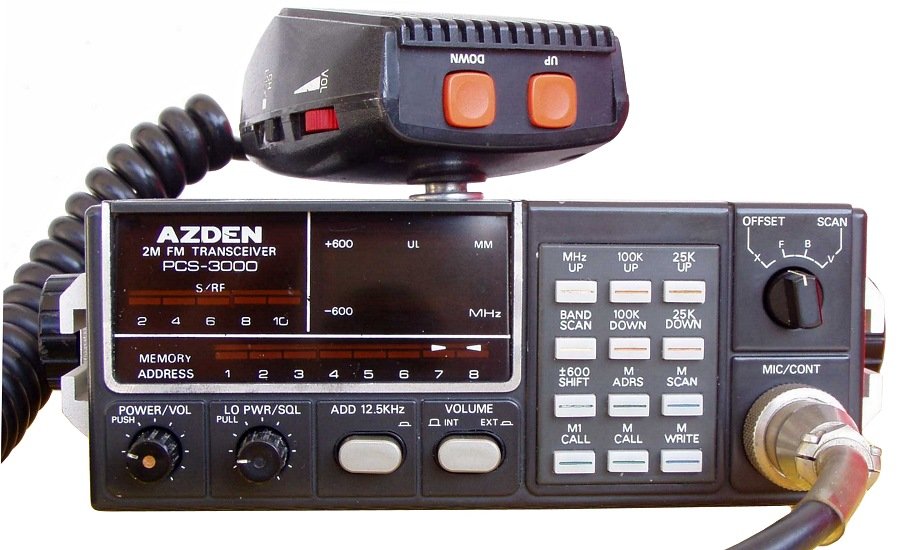

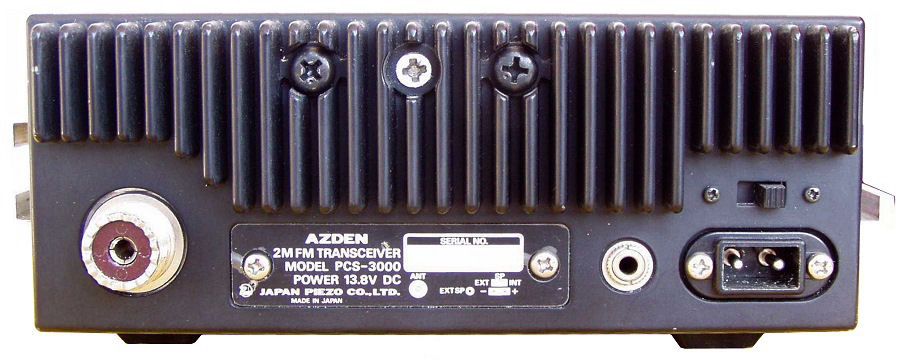

Azden PCS-3000
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz, 12.5/25 KHz steps (Europe)
144-148 MHz, 5/10 KHz steps (USA) |
| Mode: |
FM |
| RF Power Output: |
Hi: 25 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 700 mA
TX: Max 5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
158*66*246 mm |
| Weight: |
2.5 Kg |
| Manufactured: |
1981-19xx |
| Other: |
8 memories |
| Related Documents: |
|
 |
