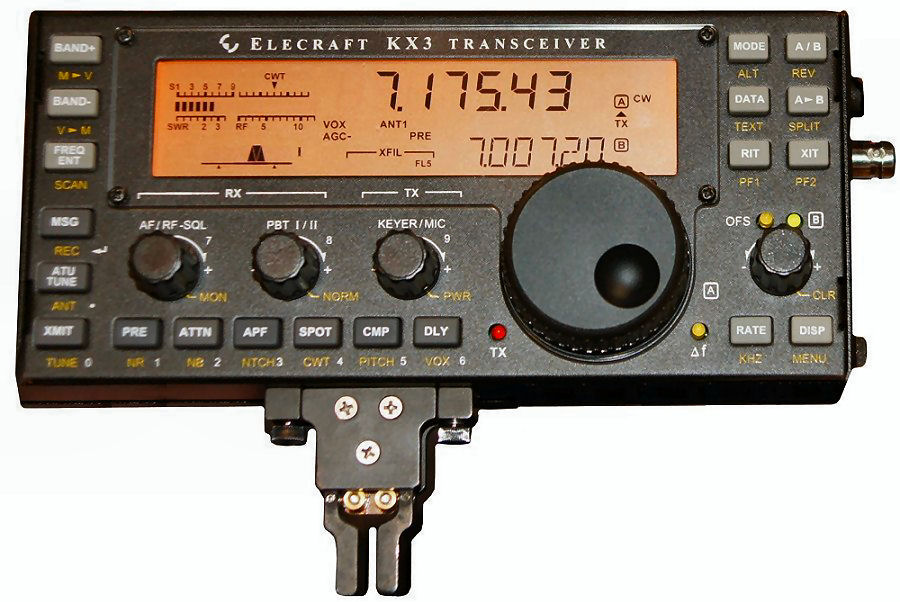

Elecraft KX3
| Type: |
Amateur Transceiver |
| Frequency Range: |
10-160 m + WARC / 6m |
| Modes: |
AM/FM/SSB/CW/Data (PSK31 & RTTY) |
| RF Power output: |
Hi: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC Or Internal Battery Pack |
| Current Drain: |
RX: 150 mA
TX: ?? mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
188 x 89 x 43 mm |
| Weight: |
680 gr |
| Manufactured: |
USA, 2011-20xx |
| Other: |
Software Defined Radio
Built-in auto-AT
Built-in keyer and paddle
100 W PA option |
| Related Documents: |
|
|
