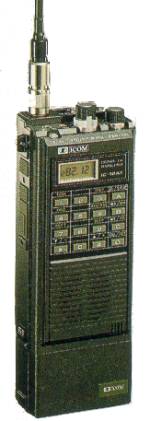

Icom IC-12AT
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
1260-1300 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 1 W
Lo: 0.1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC external or battery pack |
| Current Drain: |
RX: ? mA
TX: Max 0.9 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
65*171*36 mm |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
Keyboard |
| Related Documents: |
|
|
