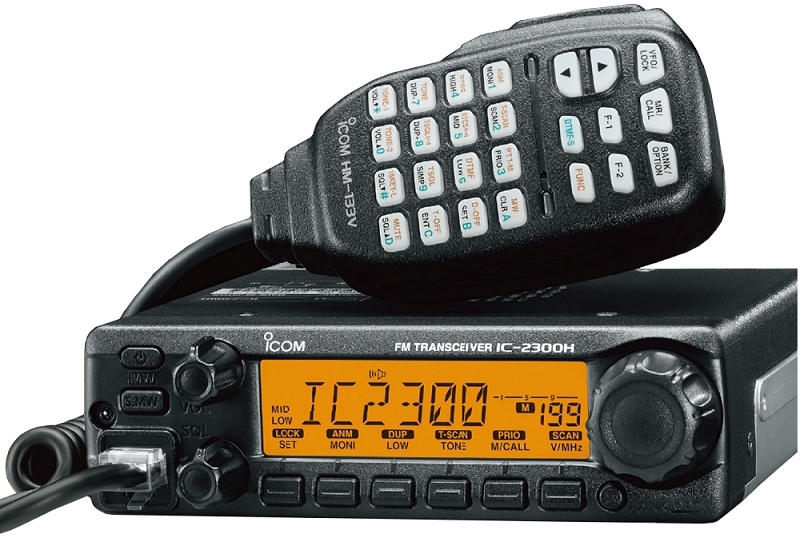

Icom IC-2300H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 MHz (USA)
RX: 136-174 MHz |
| Modes: |
FM/NFM |
| RF Power output: |
65W/25W/10W/5W Selectable |
| Memories: |
207 (inc. 6 pairs of scan edges and 1 call channel) |
| Frequency Steps: |
5, 10, 12.5, 20, 25, 30, 50 kHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: 11 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (H*W*D): |
40 x 140 x 162 mm |
| Weight: |
1.1 Kg |
| Manufactured: |
Japan 2012-20xx |
| Other: |
CTCSS & DTCS
Weather RX & Alert (US version only) |
| Related Documents: |
Quick Guide (1.95 MB)
Operation Manual (65.6 MB)
Brochure (2.24 MB) |
|
