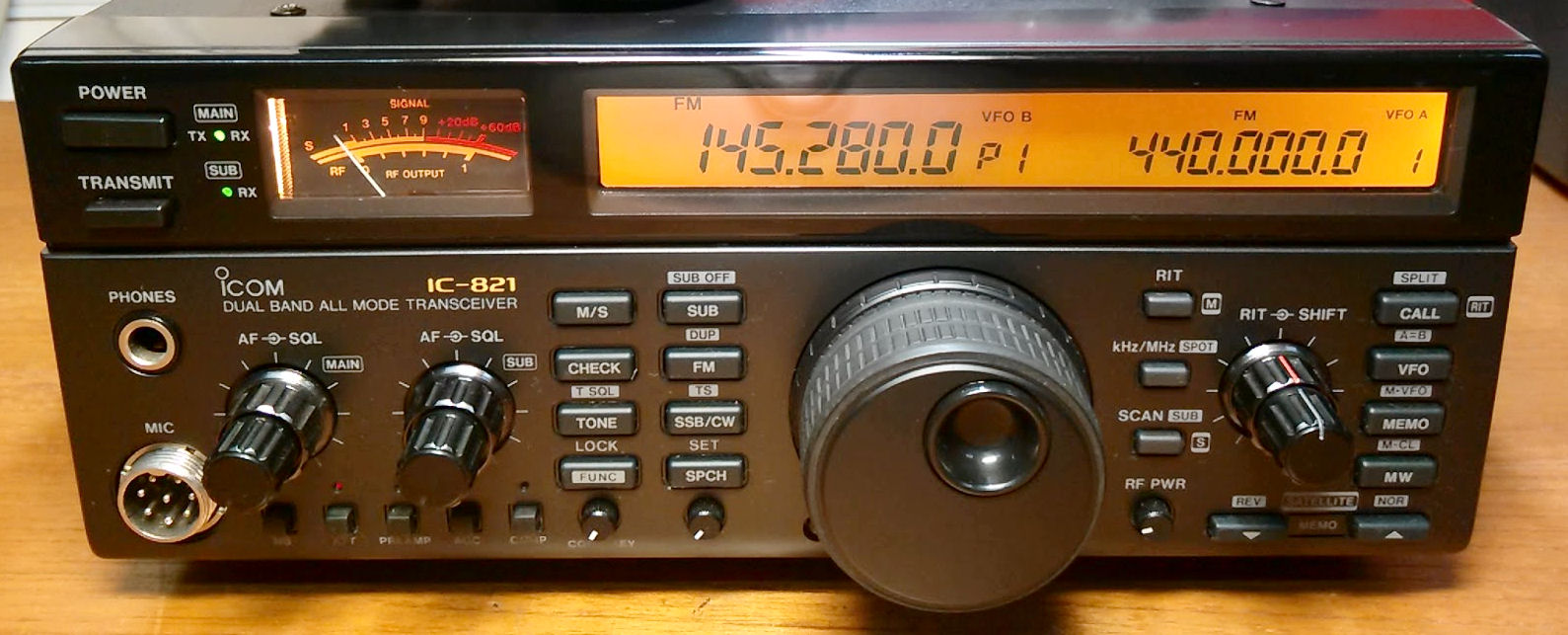

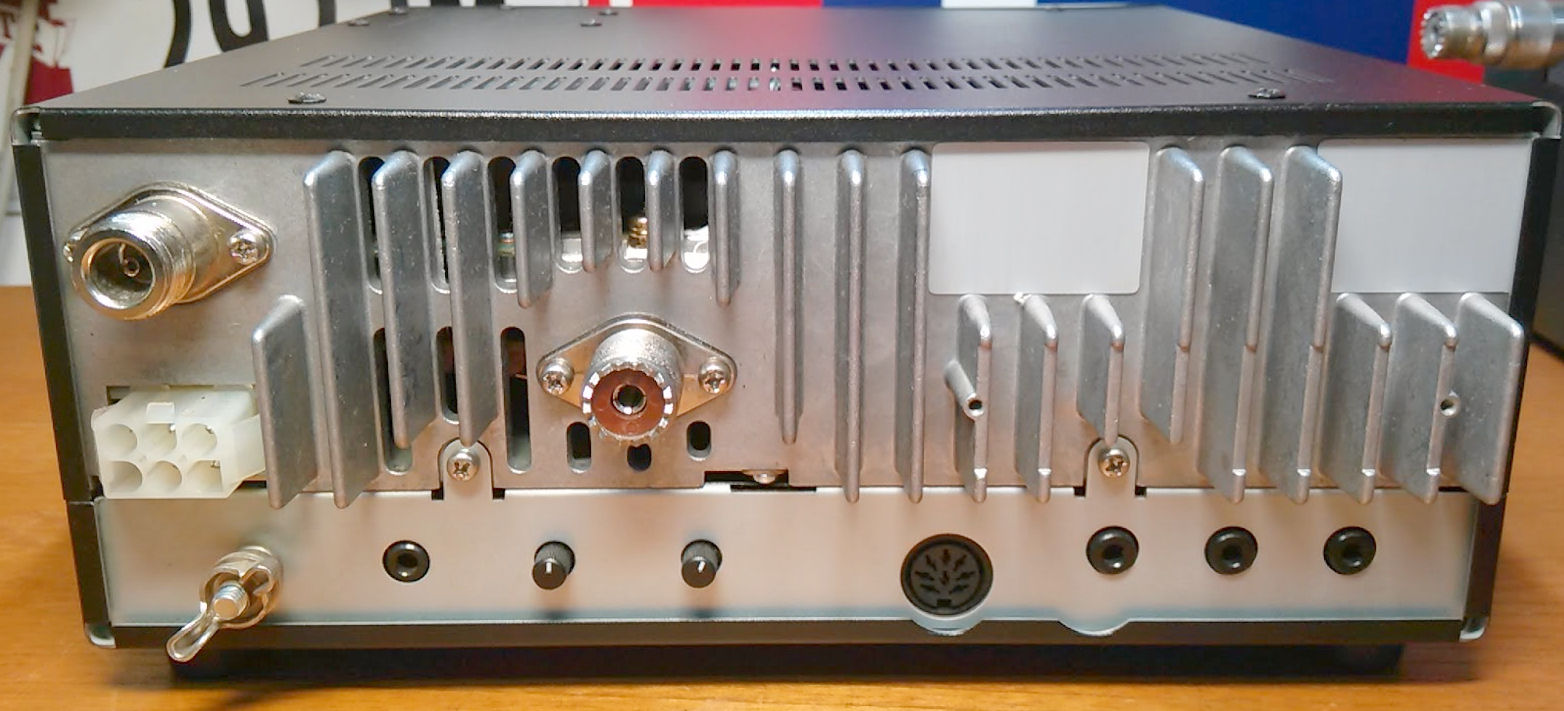

Icom IC-821H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146/430-440 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Max 45/40 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 2.5 A
TX: Max 16 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
241*94*239 mm |
| Weight: |
5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
 |
