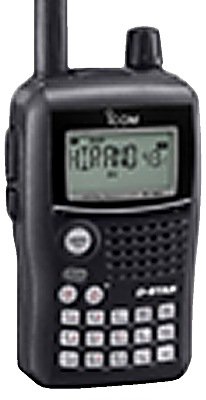

Icom ID-80
| Type: |
Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Asia)
RX: 0.5-999 MHz
5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/125/200 KHz steps |
| Modes: |
AM/FM/NFM and DV (GMSK: 4.8 kbps voice)
TX: FM/NFM and DV (GMSK: 4.8 kbps voice) |
| RF Power output: |
Hi: 5 / 5 W
Lo: 500 / 500 mW |
| Frequency Steps: |
5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, 200 KHz |
| Voltage: |
7.4 VDC (battery pack)
10-16 VDC (external) |
| Current Drain: |
?? |
| Impedance: |
50 ohms, SMA |
| Dimensions (W*H*D): |
?? mm |
| Weight: |
?? |
| Manufactured: |
Japan, 2009-200x |
| Other: |
D-Star concept. CTCSS and DTCS
GPS speaker-mike option (HM-189GPS) |
| Related Documents: |
|
|
