Kenwood/Trio R-2000
| Type: |
HF Receiver |
| Frequency Range: |
0.15-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
Max 800 mA |
| Aerial Input: |
50/500 ohms |
| Dimensions (W*H*D): |
378*115*210 mm |
| Weight: |
5.5 Kg |
| Manufactured: |
Japan, 1983-1992 |
| Other: |
RX 118-174 MHz Option |
| Related Documents: |
User Manual (4.14 MB)(in english/german/french/spanish)
Service Manual (6.6 MB) |

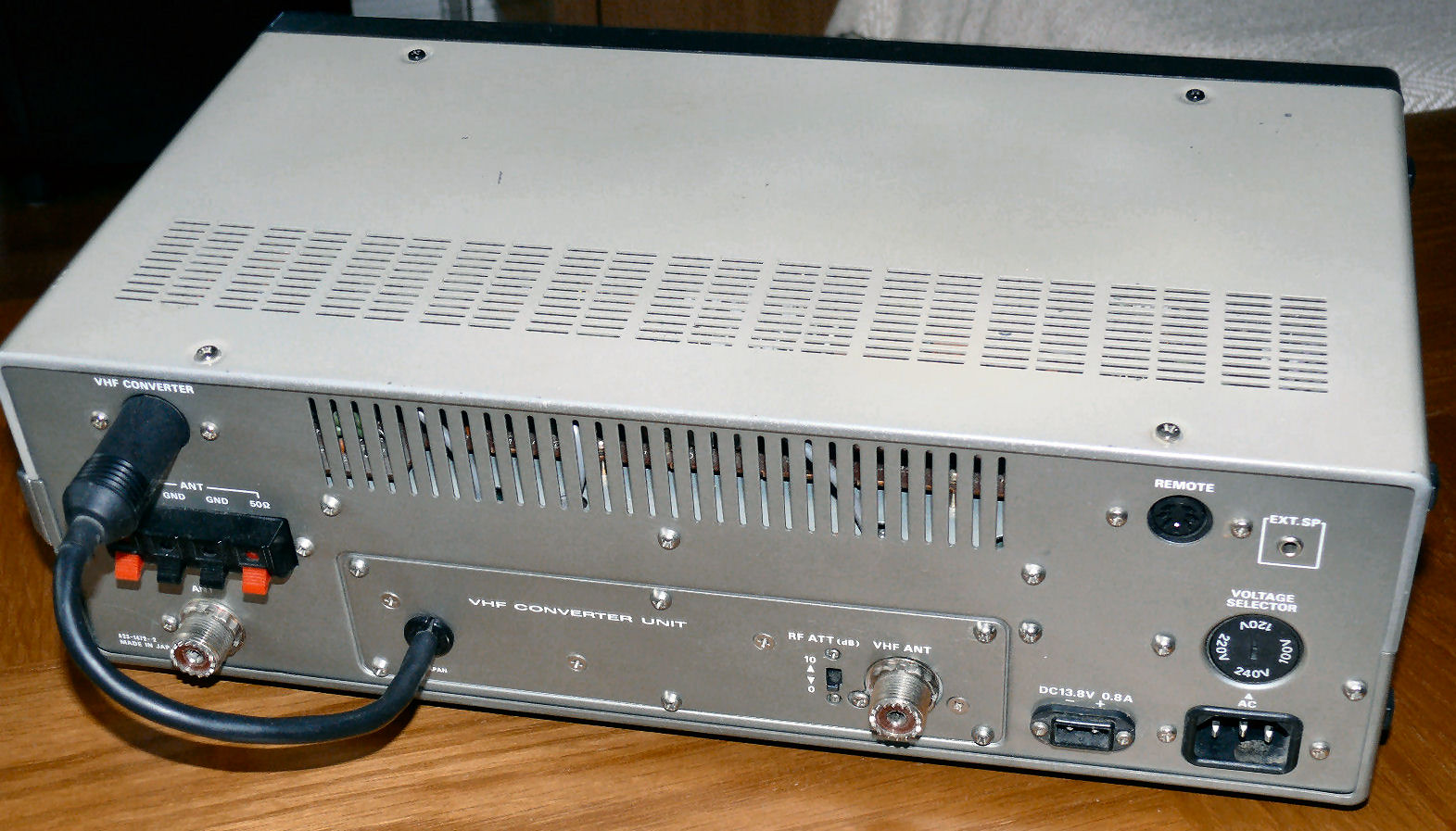

With VHF Option Fitted:
 |
