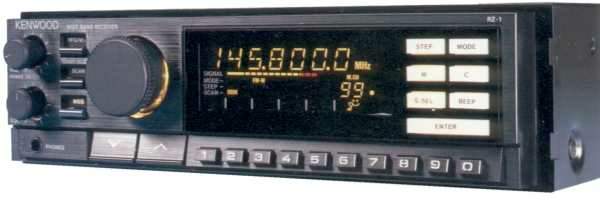

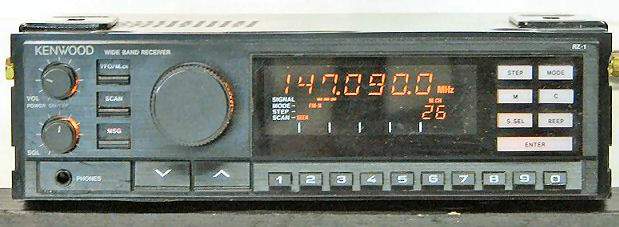

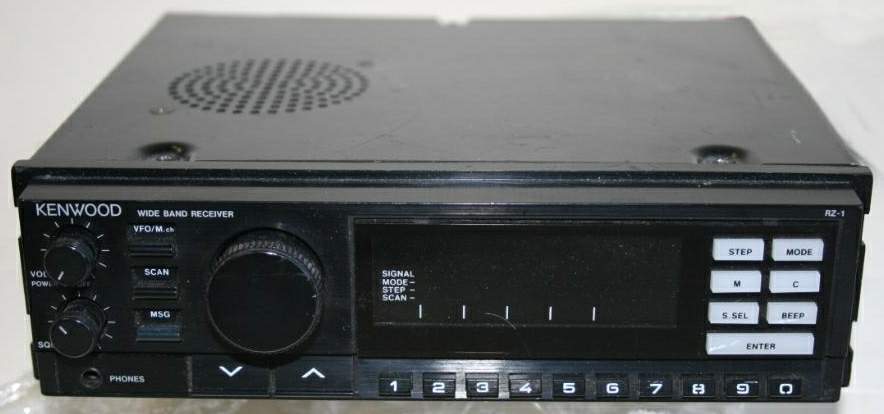

Kenwood RZ-1

Type: HF/VHF/UHF Receiver/Scanner
Frequency Range: 0.5-905 MHz
Modes: AM/FM/WFM
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 11-16 VDC
Current Drain: Max 1 A
Aerial Input: 50-300 ohms
Dimensions (W*H*D): 180*50*158 mm
Weight: 1.5 Kg
Manufactured: Japan, 1988-19xx
Other: 100 memories.
Related Documents: User Manual (909 KB)
Service Manual (1.82 MB)
