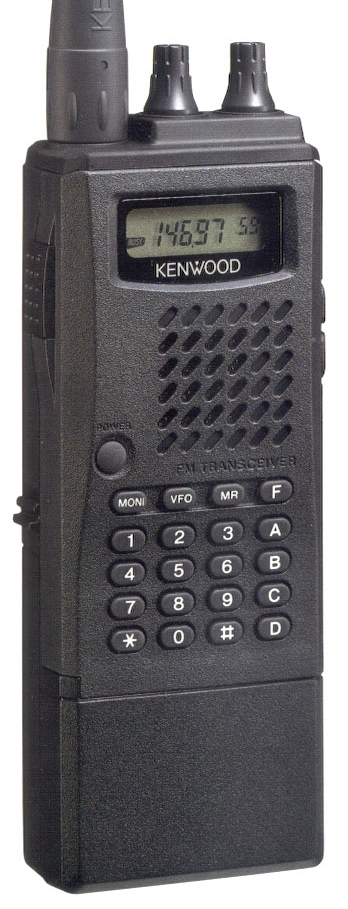

Kenwood TH-235E
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
TX: 144-146 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 1.5-5 W (depending on voltage)
Lo: 1.0 W |
| Sensitivity: |
0.13 uV or Less |
| Selectivity: |
12 KHz (-6 dB), 28 KHz (-40 dB) |
| Image rejection: |
N/A |
| Voltage: |
6.8-15 VDC |
| Current Drain: |
Rx: 50 mA
Tx: Max 1.3 A |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
52 x 166 x 37 mm |
| Weight: |
361 gr |
| Manufactured: |
|
| Other: |
|
| Related Documents: |
User Manual (2.69 MB) |
|
