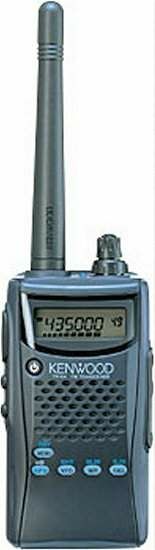

Kenwood TH-K4E
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz |
| Modes: |
FM/FMN |
| RF Power output: |
Hi: 5 W (depending on voltage)
Mid: ? W
Lo: ? W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-16 VDC external or 7.2 VDC internal |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*128*36 mm |
| Weight: |
355 gr |
| Manufactured: |
2003-200x |
| Other: |
100 memories. CTCSS/DCS. VOX. PC-programmable.
New price 2003 in the UK: £134.95 |
| Related Documents: |
User Manual (1.10 MB)
Service Manual (1.88 MB) |
|
