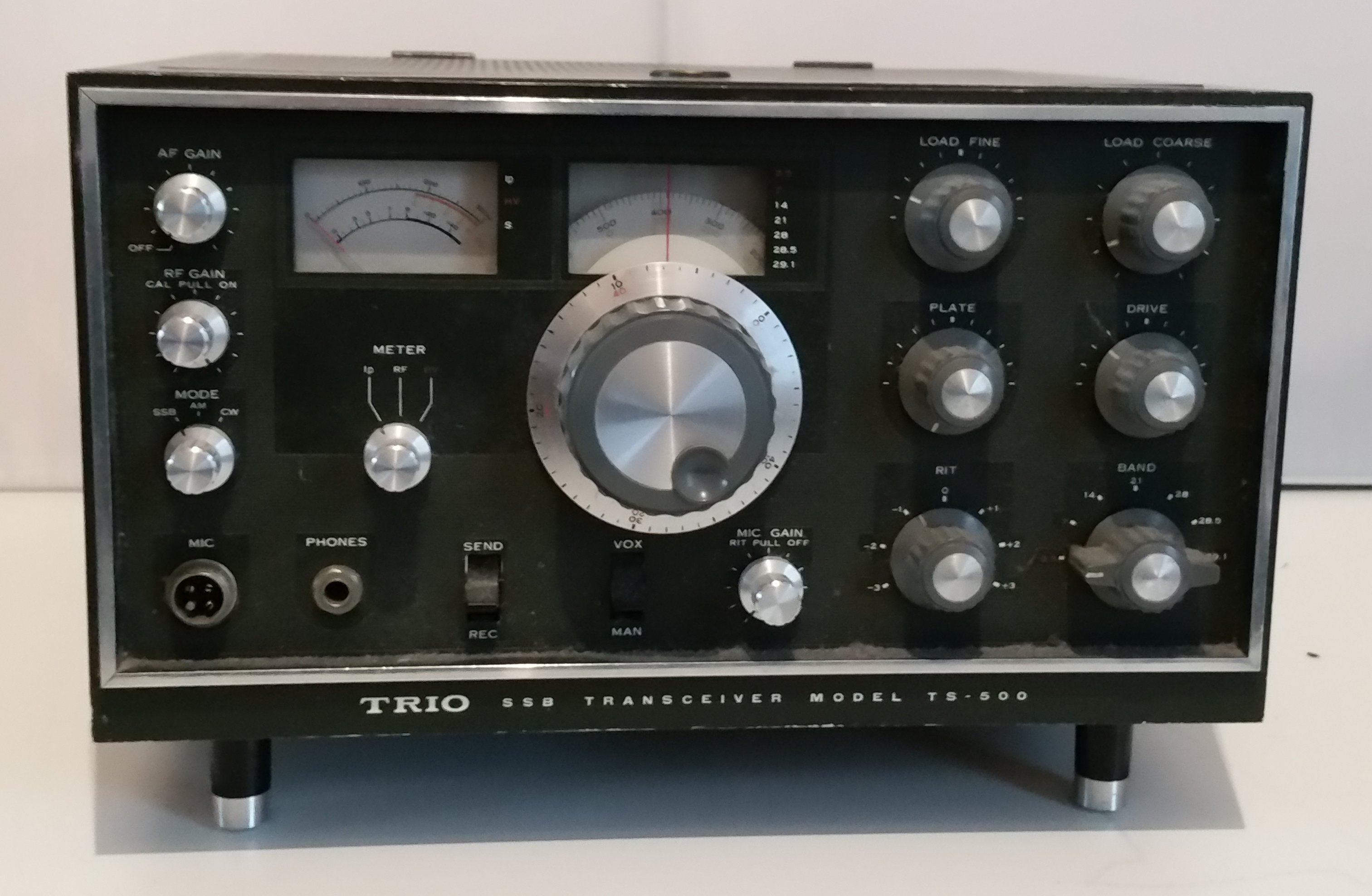

Trio TS-500
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
AM/SSB/CW |
| RF Power output: |
200W (Maximum Input Power)
10 m Only: 120W (Standard input Power) |
| Sensitivity: |
20 m: 1.05 uV (10 dB S/N) |
| Selectivity: |
2.7 KHz (-6 dB), 5.0 KHz (-55 Power dB) |
| Image rejection: |
More Than 40 dB |
| Voltage: |
Mains (with PS-500AC) |
| Power Consumption: |
RX: 250W
TX: 450 W |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
330*220*300 mm |
| Weight: |
17.6 lbs |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (3.72 Mb) |

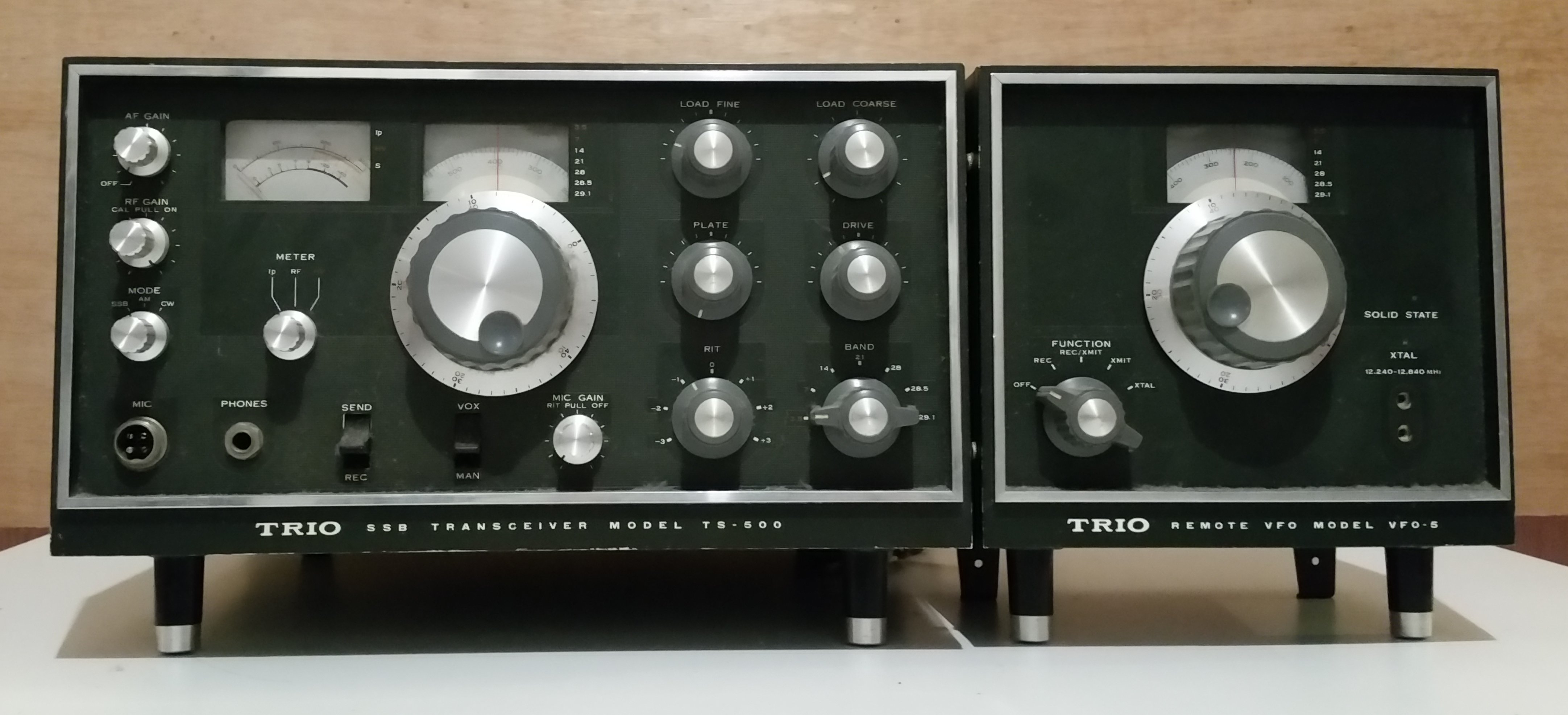

Trio TS-500 + VFO-5
 |
