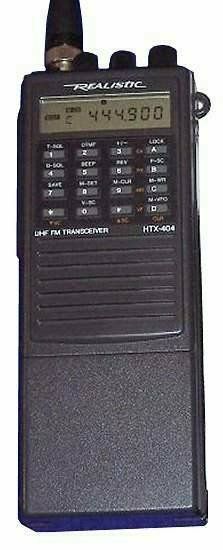

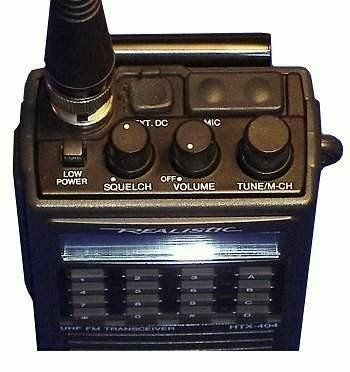

Realistic HTX-404 {USA Catalog Number: 19-1140}*
| Type: |
Amateur UHF transceiver |
| Frequency Range: |
440-450 MHz (430-450 MHz after modification)
(5 / 10 / 15 / 20 / 25 / 50 / 100 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 1.5-5 W (depending on voltage)
Lo: 0.5 W |
| Sensitivity: |
0.2 uV (12 dB SINAD) |
| Selectivity: |
60 dB |
| Image rejection: |
N/A |
| Voltage: |
7.2-9 VDC (6*R6/AA) or 7.2-13.8 VDC external |
| Current Drain: |
RX: 25-100 mA
TX: 0.8-1.8 A |
| Impedance: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*117*37 mm |
| Weight: |
540 gr |
| Manufactured: |
|
| Other: |
CTCSS and DTMF |
| Related Documents: |
Owner's Manual (1.64 MB) |
 |
