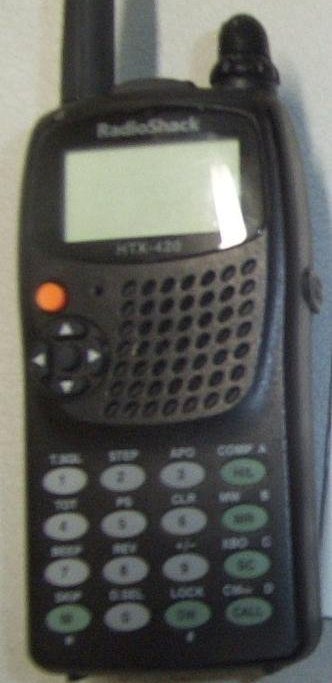

Realistic HTX-420 {USA Catalog Number: 19-1108}*
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 438-450 MHz
RX: 137-174 / 420-512 / 108-137 MHz |
| Modes: |
AM/FM |
| RF Power output: |
Max: 4W |
| Frequency Steps: |
N/A |
| Voltage: |
5-13.8 VDC |
| Current Drain: |
Max: 1500mA |
| Impedance: |
50 ohms, BNC |
| Dimensions (W*H*D): |
61 x 122 x 31 mm |
| Weight: |
325 gr |
| Manufactured: |
|
| Other: |
N/A |
| Related Documents: |
Owner's Manual (1.64 MB) |
|
