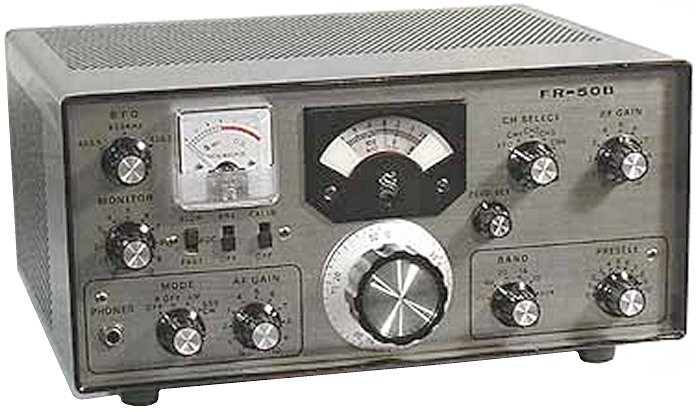

Sommerkamp FR-50B

Type: HF Receiver
Frequency Range: 10-80 m
Mode: AM/SSB/CW
Sensitivity: 0.5 uV (10 dB S/N)
Selectivity: 5 KHz (-50 dB), 1.8 KHz (-6 dB)
Image rejection: >50 dB
Voltage: Mains
Current Drain: ?
Aerial Input: 50-75 ohms
Dimensions (W*H*D): 13 x 6 x 10.25"
Weight: 17.5 lbs
Manufactured: Japan, 196x-19xx
Other: 8 Valves
Related Documents: User Manual (2.9 MB)
