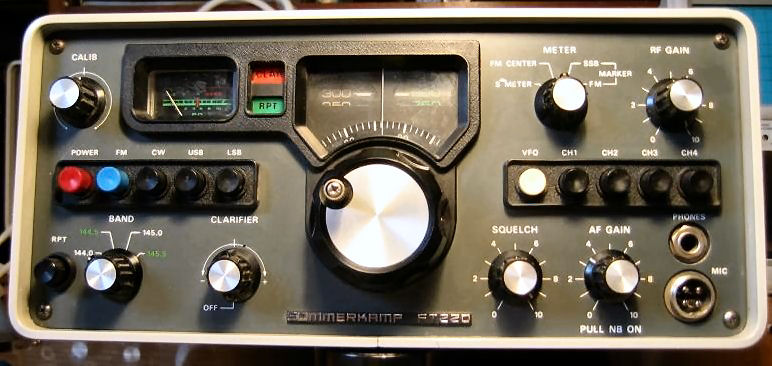

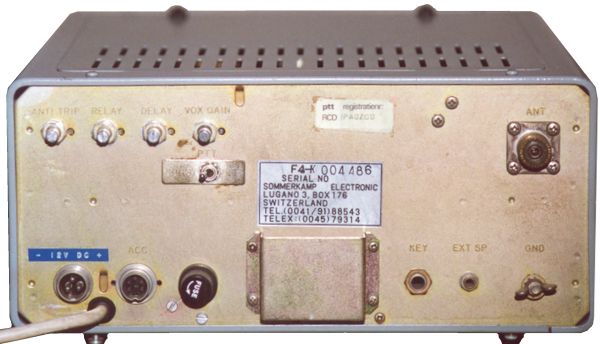

Sommerkamp FT-220

Type: Amateur VHF Transceiver
Frequency Range: 144-146 MHz
Mode: FM/SSB/CW
RF Power output: 10 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 12-14.5 VDC or Mains
Current Drain: RX: 600 mA
TX: Max 3 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 280*125*295 mm
Weight: 8.5 Kg
Manufactured: 197x-197x
Other:
Related Documents: Schematic (1.04 MB)
