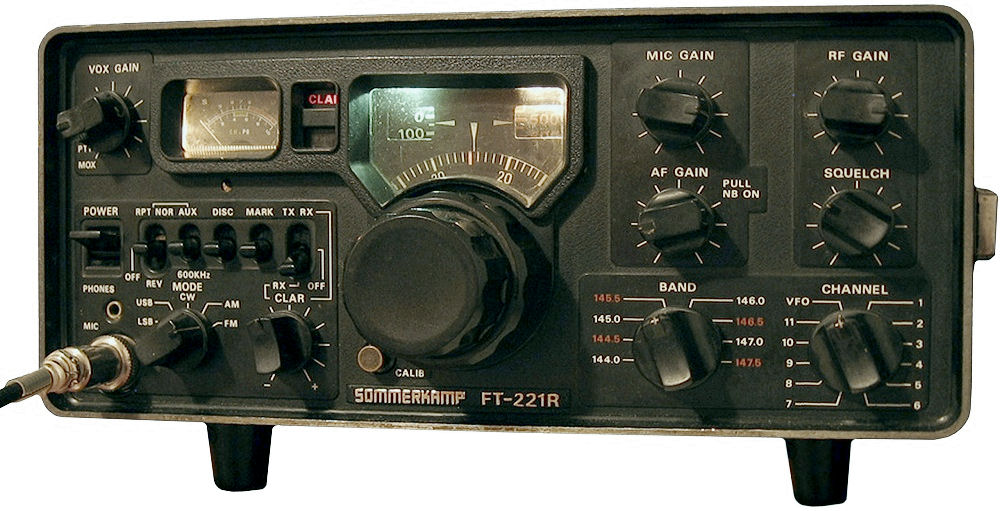

Sommerkamp FT-221R
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
44-148 MHz in 8x 500 KHz Segments |
| Mode: |
AM/FM/SSB/CW |
| RF Power output: |
AM: 2.5 W
FM/CW: 14 W
SSB: 12 W PEP |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-14.5 VDC or Mains (100/110/117/200/220/234 VAC) |
| Current Drain: |
RX: 0.6 A (30 VA)
TX: Max 3 A (90 VA) @ 10 W output |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
280 x 125 x 295 mm |
| Weight: |
8.5 Kg |
| Manufactured: |
Japan, 1976-197x (Discontinued) |
| Other: |
|
| Related Documents: |
|
|
