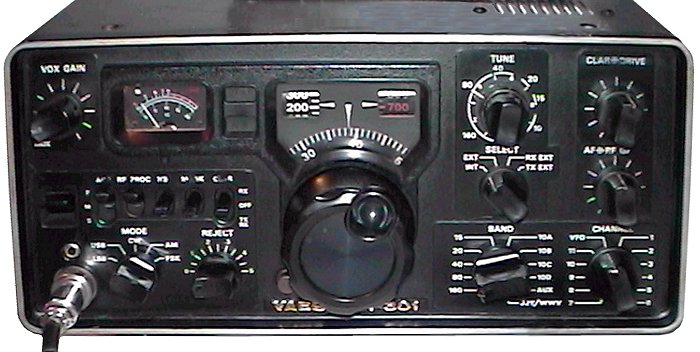

Yaesu FT-301
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m
RX: 10-160 m + CB and WWV |
| Modes: |
AM/SSB/CW/FSK |
| RF Power output: |
SSB: 200 W (PEP input)
CW: 200 W (input)
AM/FSK: 50 W (input) |
| Sensitivity: |
0.25 uV (10 dB S/N) |
| Selectivity: |
SSB: 2.4 KHz (-6 dB), 4 KHz (-60 dB)
CW/FSK: 0.6 KHz (-6 dB), 4 KHz (-60 dB)
AM: 6 KHz (-6 dB), 12 KHz (-60 dB) |
| Image rejection: |
Better than 60 dB (15-160 m)
Better than 50 dB (10 m) |
| Voltage: |
13.5 VDC |
| Current Drain: |
RX: Max 1.1 A
TX: Max 21 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
280*125*370 mm |
| Weight: |
9 Kg |
| Manufactured: |
197x-19xx |
| Other: |
Analog readout |
| Related Documents: |
User Manual (3.84 MB) |
|
