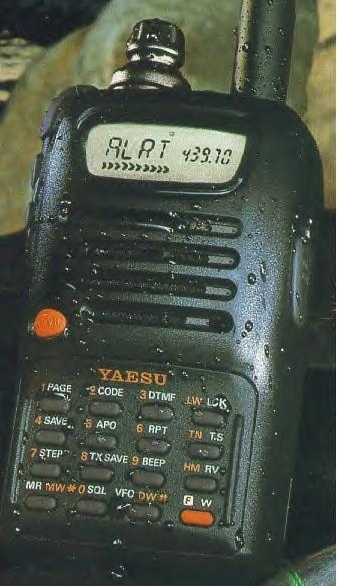

| Type: | Amateur UHF Transceiver |
| Frequency Range: | TX: 430-440 MHz RX: 420-470 MHz |
| Modes: | FM |
| RF Power output: | 5 / 2 / 1 / 0.1 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 4-16 VDC |
| Current Drain: | RX: Max 200 mA TX: Max 1.5 A |
| Aerial Input: | 50 ohms |
| Dimensions (W*H*D): | 57*99*30 mm |
| Weight: | 325 gr |
| Manufactured: | 19xx-19xx |
| Other: | |
| Related Documents: |
