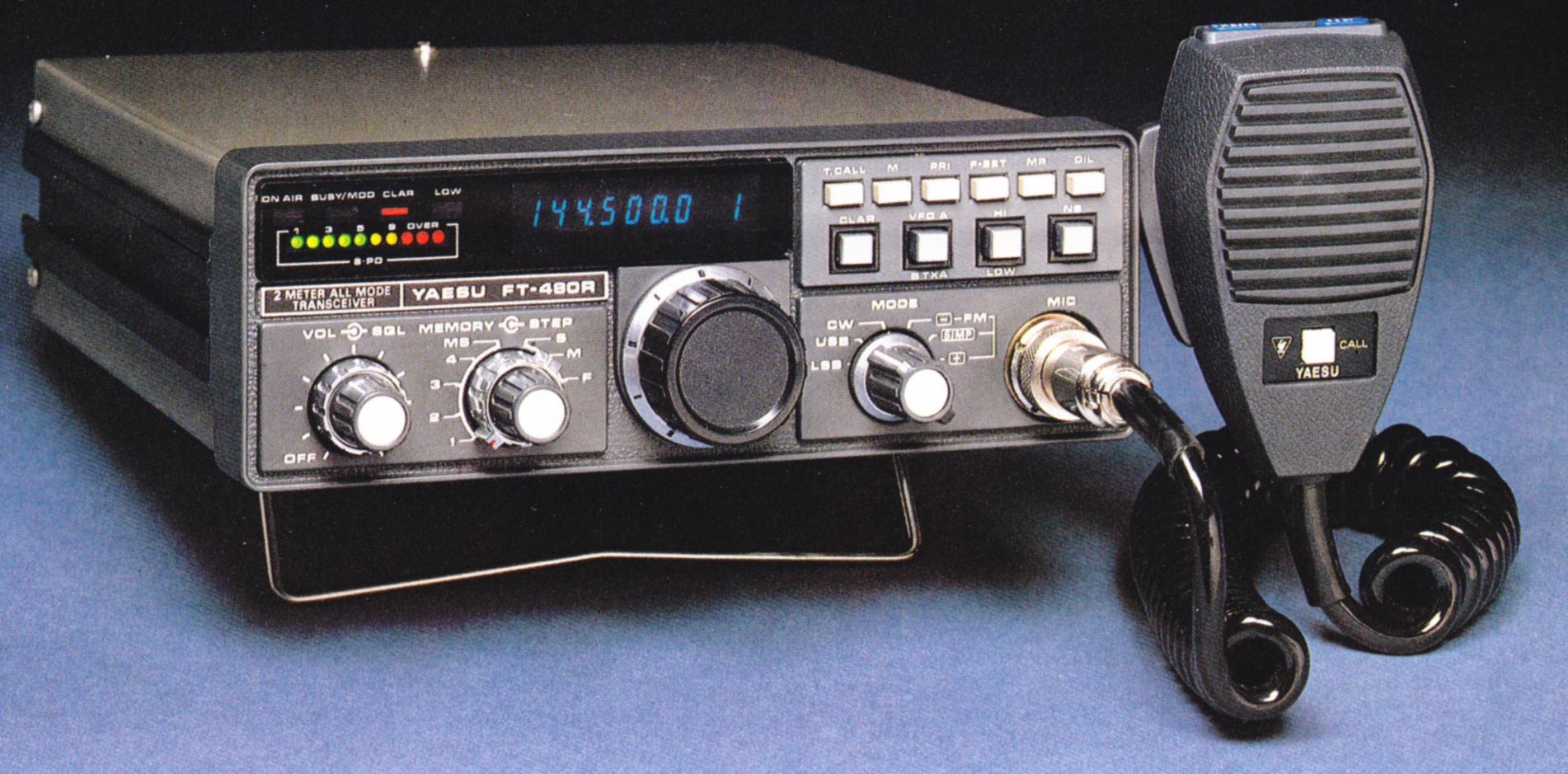

Yaesu FT-480R
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-147 MHz (Europe)
144-149 MHz (USA) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
SSB: 30 W (PEP input)
FM/CW, Hi: 30 W, Lo: ? W (DC input) |
| Sensitivity: |
SSB/CW: 0.5 uV for 20 dB S/N
FM: 0.35 uV for 20 dB QS |
| Selectivity: |
SSB/CW: 2.4 KHz @ 6 dB down, 4.1 KHz @ 60 dB down
FM: 14 KHz @ 6 dB down, 25 KHz @ 60 dB down |
| Image rejection: |
Better than 60 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.5 A
TX: 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
180*60*240 mm |
| Weight: |
2.9 Kg |
| Manufactured: |
1980-19xx |
| Other: |
|
| Related Documents: |
|
 |
