| Type: |

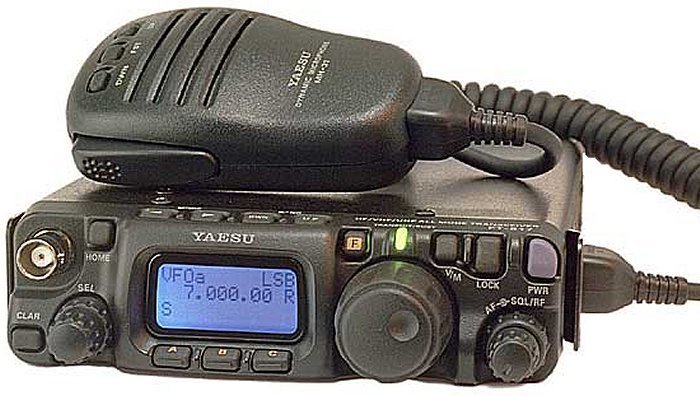

Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC/ 50-54 / 144-146 / 430-440 MHz (Europe)
TX: 10-160 m + WARC and 60 m / 50-54 / 144-148 / 440-450 MHz (USA)
RX: 0.1-56 / 76-154 / 420-470 MHz |
| Modes: |
AM/FM/WFM/SSB/CW/RTTY/PSK31 |
| RF Power output: |
5 W (SSB/CW/FM) and 1.5 W (AM) with 13.8 V external DC
2.5 W (SSB/CW/FM) and 0.7 W (AM) with 9.6 V internal DC |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
8*Li-Ion / R6/AA or 13.8 VDC external |
| Current Drain: |
RX: Max ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, BNC on front or SO-239 on back |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
2004-200x |
| Other: |
CTCSS/DCS. Spectrum scope. Alpha tags. 9K6 packet ready. This is
an updated FT-817 with 60 m coverage and higher capacity battery pack |
| Related Documents: |
|
