| Type: |

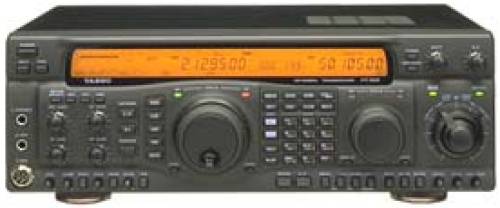

Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.1-30 MHz |
| Modes: |
AM/SSB/CW |
| RF Power output: |
SSB/CW: Max 100 W
AM: 25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 2.2 A
TX: Max 22 A |
| Aerial Input: |
16.7-150 ohms with a built-in auto-AT |
| Dimensions (W*H*D): |
410*135*316 mm |
| Weight: |
11.5 Kg |
| Manufactured: |
199x-200x |
| Other: |
DSP.127 memories. RS-232C. FM option.Twin RX. |
