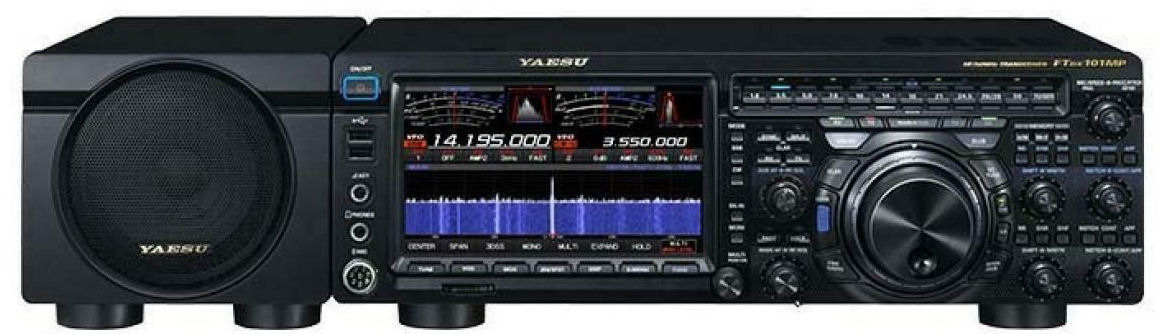

Yaesu FTDX-101MP
| Type: |
Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
10-160 m + WARC and 60 m / 6 m (also 4 m for Europe)
RX: 0.03-75 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY/PSK |
| RF Power output: |
HF: 5-100 W (AM: 5-25 W)
6 m: 5-100 W (AM: 5-25 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC ±15% |
| Current Drain: |
RX: ?? A
TX: Max ?? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
266 x 91 x 263 mm |
| Weight: |
5.9 Kg (13 lb) |
| Manufactured: |
2020-202x |
| Other: |
Hybrid SDR. 5" color touch TFT. 12 KHz, 3 KHz and 500 Hz roofing filters.
RMDR more than 116 dB. 3rd IMDR better than 109 dB. 250 MHz HRDDS.
3D spectrum stream. Hi-speed ATU with 100 memories. SD card slot.
CAT control. RS-232C. USB A/B. DVI and more |
