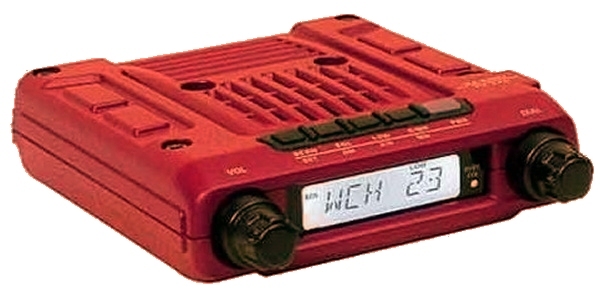

Yaesu FT-245
| Type: |
Citizen Band Transceiver (Thailand CB245) |
| Frequency Range: |
245.0000-245.9875 MHz |
| Channels: |
80 |
| Memories: |
101 |
| Frequency Steps: |
12.5 KHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 10 W
Lo: 5 W |
| Receiver System: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz |
| Sensitivity: |
0.2 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image Rejection: |
70 dB |
| Voltage: |
13.8 VDC +/-10% |
| Current Drain: |
RX: Max 600 mA
TX: Max 3 A |
| Antenna Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
127 x 35 x 126 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
2001-20xx |
| Other: |
CTCSS/PL |
| Related documents: |
N/A |
|
