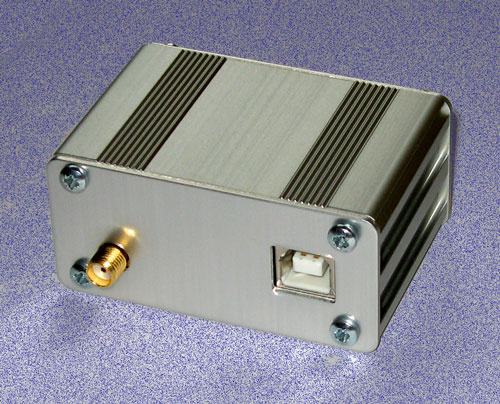

(RadarGadgets) Planegadget Radar
| Type: |
SSR Mode-S/ADS-B virtual radar receiver (SSR = Secondary Surveillance Radar) |
| Frequency Range: |
1090 MHz |
| Mode: |
Digital, 1 Mb/s PPM |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Via computer USB-connector |
| Current Drain: |
Max ? mA |
| Aerial Input: |

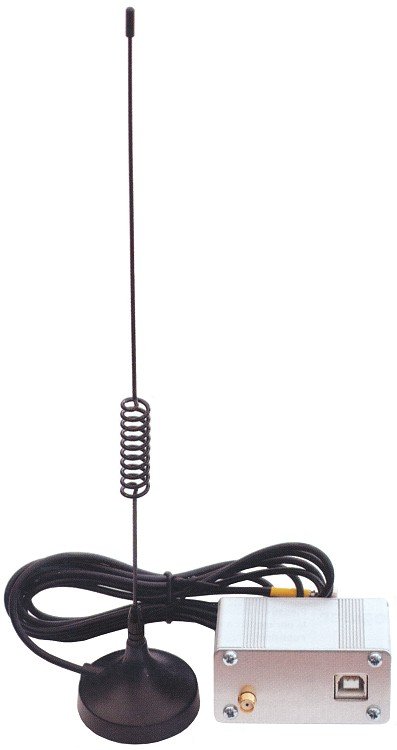

50 ohms, BNC (magnetic mount antenna is included) |
| Dimensions (W*H*D): |
63*30*50 mm |
| Weight: |
? Kg |
| Manufactured: |
United Kingdom: 2010-20xx .
New price 2010 in the UK: £199 |
| Other: |

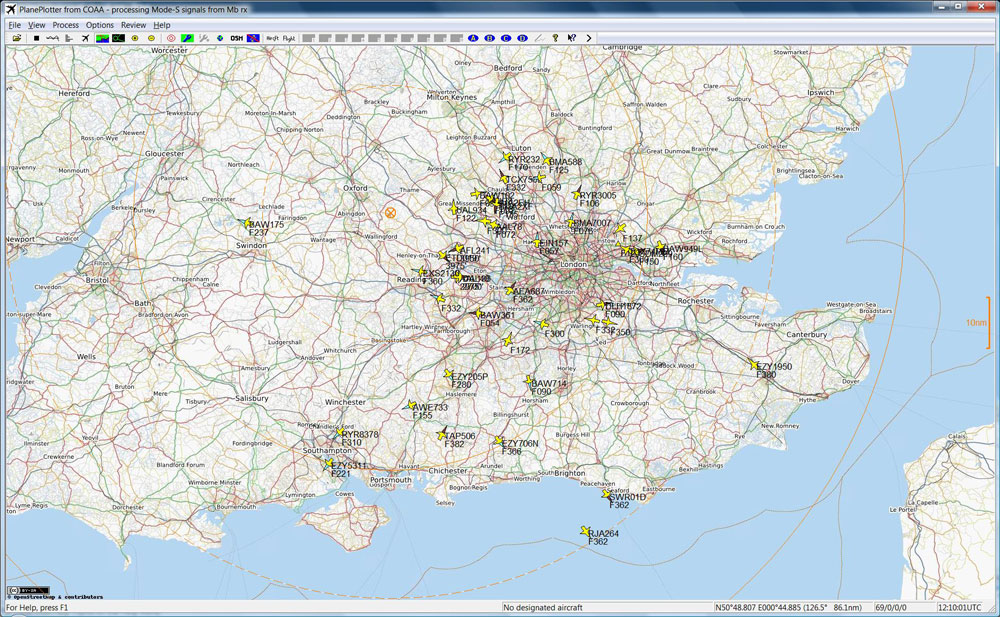

Connect to a PC, start the software and you'll get a virtual radar screen
that will display all properly equipped aircrafts in your covered area, including
ID, location, height and much more |
| Related Documents: |
User Guide (V 2.0) (1.57 MB)
Advanced User Guide (V 2.0) (98.9 Kb)
Installation Guide (V 2.0) (1.93 MB) |
|
